clintonman · Post by **clintonman** » 07 Aug 2012, 05:51

The first version of the updated FBX import/export plugin has been posted. This will only import meshes, but this aspect is improved over the old plugin. It does not import animations or skeletons yet and it does not export anything yet.

Improvements:
vi ... f=4&t=3543"

Better wavefront obj import
Better 3ds import
16 materials per mesh over the previous maximum of 8
automatic rsx plugin installation

find it here:
http://www.clintons3d.com/plugins/trues ... index.html"
under the FBX_2 section

source code is also available

clintonman · Post by **clintonman** » 17 Aug 2012, 01:45

The import portion is done as it's gonna be.
It now converts NURBS to polygon meshes. Animations import and are better than before with less crazy flipping on rotations. Camera animation for focal length is imported from fbx file generated by Lightwave. Transparency import can be tricky since it varies from one program to another so I added an option to ignore transparency values when importing. Loading of a file one section at a time is easier than in the original version. You just tell it how many items to load from the file and repeat running the import until all of the items in the file have been read.

The only disappointing part is that I wasn't able to crack the bind-pose problem. It will read in skeletal meshes and the bones will look lined up properly, but when skinned and animation imported it becomes a great looking skeleton animation with a twisted ugly mesh attached to it. There is some incompatibility between the mesh binding and the animations imported. If you don't import animation everything else works.

Next up is the export portion of the plugin. I don't expect any real improvements for the exporter. The code will just be cleaner and easier to maintain or extend.

clintonman · Post by **clintonman** » 26 Aug 2012, 22:30

The new exporter is done. It works the same as the old one but the results are better and it crashes less. Camera and light transforms are not good and the skeleton is still limited to all joints set to 0,0,0 rotations to get good skinning on export. This also fixes the rsx install location for the full version of truespace and includes a button to uninstall the previous fbx2 rsx plugin. It can't copy the new rsx file if a version is already installed and active.

Tiles · Post by **Tiles** » 27 Aug 2012, 07:11

Nice one. Thanks Clinton

There are unfortunately a few qirks left.

When i cancel the import then i get nevertheless a Import complete message.

The Import FBX Button and the export FBX button leads to the im- and export dialogue where you can im and export FBC; OBJ and Collada. Wouldn`t a "Import" Button without the "FBX" part justifiy it better?

Now the showstoppers:

Textures gets lost while export. In the mtl file part of the obj file you can clearly see that it is not written.

Mesh data gets rotated around the world center. Means when i load a mesh with Modeler and save it with Workspace then the mesh gets saved at another location and with another rotation.

The UV gets flipped vertically when exporting.

clintonman · Post by **clintonman** » 27 Aug 2012, 15:58

Tiles wrote:Nice one. Thanks Clinton

There are unfortunately a few qirks left.

When i cancel the import then i get nevertheless a Import complete message.

The Import FBX Button and the export FBX button leads to the im- and export dialogue where you can im and export FBC; OBJ and Collada. Wouldn`t a "Import" Button without the "FBX" part justifiy it better?

Now the showstoppers:

Textures gets lost while export. In the mtl file part of the obj file you can clearly see that it is not written.

Mesh data gets rotated around the world center. Means when i load a mesh with Modeler and save it with Workspace then the mesh gets saved at another location and with another rotation.

The UV gets flipped vertically when exporting.

Thanks for the feedback. Good point on the button labels.

I can answer the texture problem now. The only material type that fully exports are created from BlankDXMaterial as the base. It won't work with the compiled(closed), vray or lightworks materials. I will create some materials so it's easier to get started with them. I'll get back to you on the uv and rotation/location issues.

froo · Post by **froo** » 27 Aug 2012, 16:43

Hey Clinton.
Are objects only exported as triangle meshes? Or can they be exported as quads and ngons as well?

Thanks

Froo

Tiles · Post by **Tiles** » 27 Aug 2012, 18:57

I can answer the texture problem now. The only material type that fully exports are created from BlankDXMaterial as the base. It won't work with the compiled(closed), vray or lightworks materials. I will create some materials so it's easier to get started with them. I'll get back to you on the uv and rotation/location issues.

Hm, that`s quite a handicap. For leveldesign needs i always end in reimporting lots of small things and make one big thing out of it. And this small things are of course all textured ...

clintonman · Post by **clintonman** » 28 Aug 2012, 01:53

froo wrote:Hey Clinton.
Are objects only exported as triangle meshes? Or can they be exported as quads and ngons as well?

Thanks

Froo

It's not limited to triangle export and I don't remember off the top of my head if it does concave polygons or not.

Edit: Just did a quick test and it does export concave polygons.

clintonman · Post by **clintonman** » 28 Aug 2012, 02:11

Tiles wrote:
I can answer the texture problem now. The only material type that fully exports are created from BlankDXMaterial as the base. It won't work with the compiled(closed), vray or lightworks materials. I will create some materials so it's easier to get started with them. I'll get back to you on the uv and rotation/location issues.
Hm, that`s quite a handicap. For leveldesign needs i always end in reimporting lots of small things and make one big thing out of it. And this small things are of course all textured ...

Well, it would take a lot of work to be able to read all the different types of materials in truespace with the plugin, but maybe some kind of conversion script would be possible/easier.

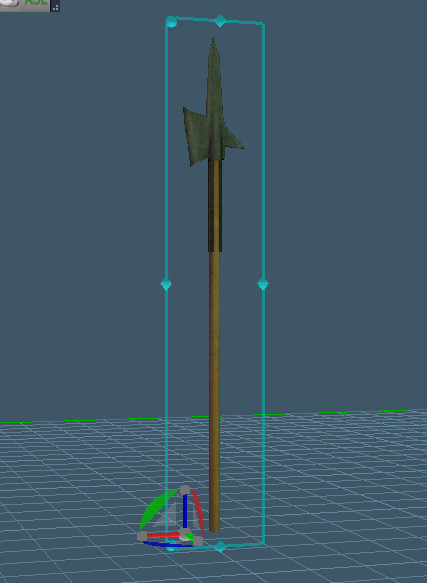

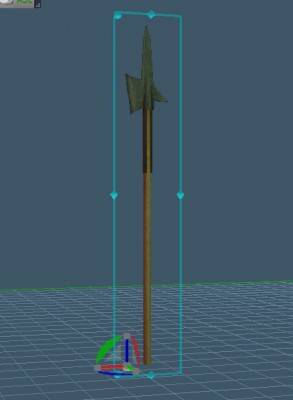

I did a quick check of the transformation problems and that will take some thought to fix. I exported an fbx and an obj file of the same thing and imported into Lightwave. Fbx looked ok but obj was rotated. So the fbx sdk is not writing obj and fbx the same way and I'll have to make some kind of corrections depending on the file type. It's also possible lightwave is doing something weird. The only true way to test is with a copy of Maya or Max both of which are way too expensive for me. I'll have to wait until I have a good 30 day chunk of time so I can use one of their trials and have time to fix what i find.

Tiles · Post by **Tiles** » 28 Aug 2012, 08:01

Blender imports Obj just fine, and isn`t this expensive

Means you could do some experiments with exporting from Blender, importing in tS, exporting in tS and reimport in Blender.

There`s no FBX import in the trunk yet though. But it`s at its way. They have plugged Assimp in. And you can find it in the experimental Bratwurst branch

Corresponding thread: http://blenderartists.org/forum/showthr ... rter/page7"

And Graphicall, where you should be able to find such a build: http://www.graphicall.org/"

Another idea would be Unity. It imports Obj and FBX

clintonman · Post by **clintonman** » 29 Aug 2012, 00:14

Obj should be fixed before the fbx save format. It's a matter of finding out what the fbx sdk is changing when it's saved. FBX is natively a Y-up XYZ rotation order file format. As far as I can tell truespace is Z-up ZYX rotation order as far as the fbx sdk is concerned. I need to put some code in that is aware that it's saving obj format and convert/unconvert the values that get saved.

clintonman · Post by **clintonman** » 05 Sep 2012, 22:37

clintonman wrote:
froo wrote:Hey Clinton.
Are objects only exported as triangle meshes? Or can they be exported as quads and ngons as well?

Thanks

Froo
It's not limited to triangle export and I don't remember off the top of my head if it does concave polygons or not.

Edit: Just did a quick test and it does export concave polygons.

Looks like I was only half right with that answer. FBX exports polygons, but OBJ exports triangles. If that's a limitation of the fbx sdk then I won't be working on the obj portion of it anymore.

Found it. The sdk has a triangulate for obj files option that was on by default.

clintonman · Post by **clintonman** » 06 Sep 2012, 18:29

Update:

Fixed obj export
Upside down UV map
Crash caused by unoptimized triangulation
Buttons say just "import" and "export"

I believe the plugin makes the assumption that meshes have optimized triangulation. This assumption was causing an export crash in some cases. It still exports a bad mesh, but without crashing. The fix is to run the Optimize triangulation tool on the mesh before exporting.

It still only imports and exports "BlankDX" style materials and there are no plans to change this due to the large amount of work involved.

Tiles · Post by **Tiles** » 08 Sep 2012, 07:26

It still only imports and exports "BlankDX" style materials and there are no plans to change this due to the large amount of work involved.

I can understand that you don`t want to invest this work. But that means your im and exporter is incomplete. LUUV im and exports textures just fine. Which makes the Obj part of your im and exporter obsolete. Remains fbx. And at that end we have a buggy bones system, where it doesn`t really make sense to export animations anyways because you cannot animate them in a proper way. Means i can simply use obj ...

Anyways. It`s of course your time and your decision. But there is still something broken at the obj import. I tried to import a specific Obj file, and it crashes repeatable. Another obj file imports just fine. With texture by the way.

Uninstall doesn`t work proper. I click the Uninstall button, close trueSpace, reopen it, and the plugin is still there.

clintonman · Post by **clintonman** » 08 Sep 2012, 20:37

Tiles wrote:
It still only imports and exports "BlankDX" style materials and there are no plans to change this due to the large amount of work involved.
I can understand that you don`t want to invest this work. But that means your im and exporter is incomplete. LUUV im and exports textures just fine. Which makes the Obj part of your im and exporter obsolete. Remains fbx. And at that end we have a buggy bones system, where it doesn`t really make sense to export animations anyways because you cannot animate them in a proper way. Means i can simply use obj ...

Anyways. It`s of course your time and your decision. But there is still something broken at the obj import. I tried to import a specific Obj file, and it crashes repeatable. Another obj file imports just fine. With texture by the way.

Uninstall doesn`t work proper. I click the Uninstall button, close trueSpace, reopen it, and the plugin is still there.

Thanks, I'll check out the crash and uninstaller. The uninstaller is only designed to work with the rsx plugin not the button and scripts. It exists because the rsx can't be updated without removing it first. The plugin does import and export texture materials, it just does not import export modelspace, vray and compiled materials.

Edit: I found half the reason for the crash. Looks like I had some bad code in there. The other half of the crash is caused by the triangulator code I borrowed from someone else. That code is used for polygons that are concave or have more than 4 vertices. I'll let you know when it's fully fixed. The image shows the imported mesh using the half fixed plugin and the simple polygon fan option.

Edit: Fixed one crash and gave fair warning for the other crash reason. new plugin is on the website.
New UI code was causing the importer to crash. Fixed
Triangulation code can also causes a crash but only when "convex polygons" is unchecked. Added a warning when this option is unchecked.

Question:

What format would you prefer for the materials?
I'm not going to write every possible material handling into this plugin, but I am interested in making material conversions for the Indigo and Yafaray renderers. Your preferred material type would be one more conversion.

Tiles · Post by **Tiles** » 09 Sep 2012, 09:38

Thanks for the fixes

What format would you prefer for the materials?

Not sure if i understand your question. Official material in the Workspace is DX, so i would say DX.

When you mean texture format, everything non destructive i would say. Maybe even compressed. Png jumps into my mind here

trueBlue · Post by **trueBlue** » 09 Sep 2012, 16:48

To Uninstall your plugin try:

Code: Select all

RsPackage.Uninstall('Clintons FBX Package');

without the path.
IE: RsPackage.Uninstall(progPath + 'rsx\\Clintons3DFBX.rsx');

clintonman · Post by **clintonman** » 09 Sep 2012, 17:08

trueBlue wrote:To Uninstall your plugin try:
Code: Select all
RsPackage.Uninstall('Clintons FBX Package');
without the path.
IE: RsPackage.Uninstall(progPath + 'rsx\\Clintons3DFBX.rsx');

Thanks.

clintonman · Post by **clintonman** » 09 Sep 2012, 17:36

Tiles wrote:Thanks for the fixes

What format would you prefer for the materials?
Not sure if i understand your question. Official material in the Workspace is DX, so i would say DX.

When you mean texture format, everything non destructive i would say. Maybe even compressed. Png jumps into my mind here

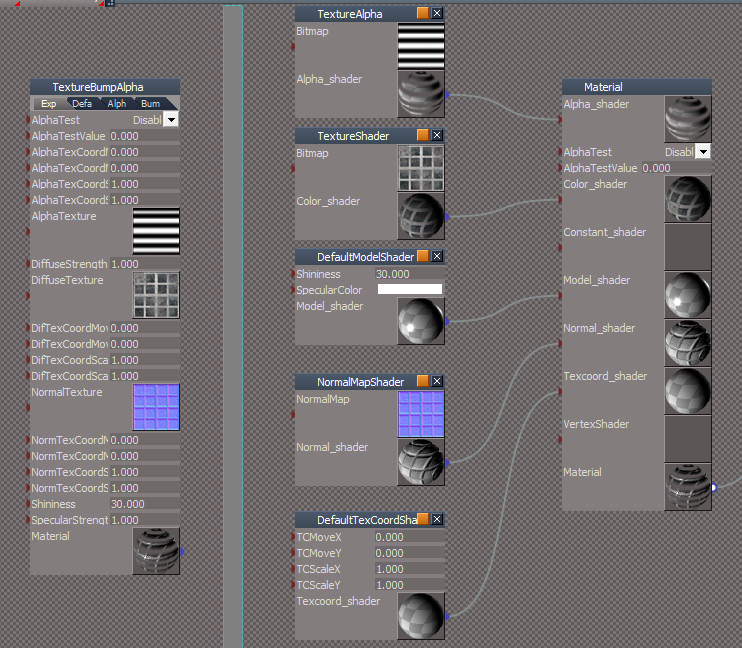

Textures will be controlled by truespace. If you use as png it will export a png or a reference to the png file. This image shows how it will work. The left is a compiled DX material and on the right is the BlankDX style material it would be converted to.

Tiles · Post by **Tiles** » 09 Sep 2012, 18:01

I see. Not sure if i can give advice here. But as told, png seems to me as a good image format.

Draise · Post by **Draise** » 09 Sep 2012, 19:40

Concerning textures, I'm not sure which would suite for import/exprot..
I would assume you would need to export UV's accurately (texcoordinates), a texture map (colour), normal map (bump) and maybe an accurate interpretation of the Phong attributes according to the FBX phong(Model) if it has any.

You could make a D3D node with fixed settings you want, and include it with your FBX plugin, so people can use that node before export to include those shader attributes (thus narrowing down the dynamics you'd have to code).

clintonman · Post by **clintonman** » 09 Sep 2012, 20:13

Draise wrote:Concerning textures, I'm not sure which would suite for import/exprot..
I would assume you would need to export UV's accurately (texcoordinates), a texture map (colour), normal map (bump) and maybe an accurate interpretation of the Phong attributes according to the FBX phong(Model) if it has any.

You could make a D3D node with fixed settings you want, and include it with your FBX plugin, so people can use that node before export to include those shader attributes (thus narrowing down the dynamics you'd have to code).

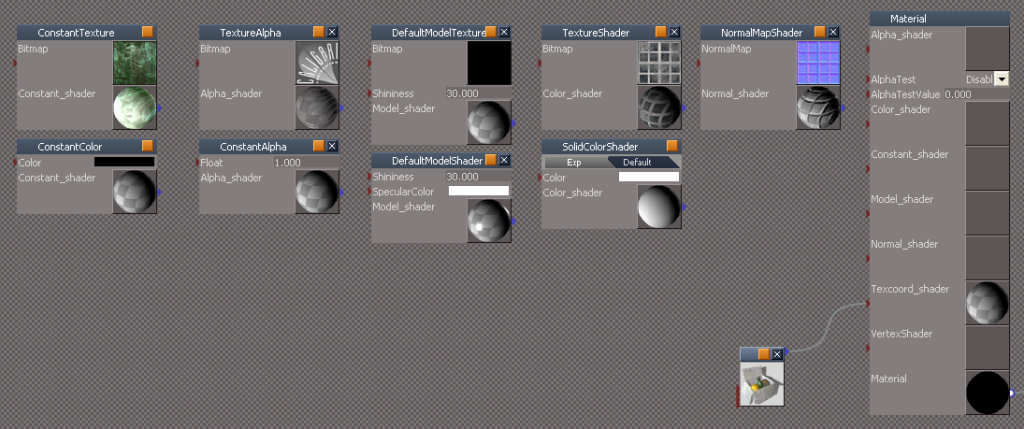

I thought about that, but one D3D node might be difficult because of all the possible combinations. I figure I'd recreate some of the compiled D3D materials(TextureBump, TextureBumpAlpha, TextureAlpha...) for a starting point. Image shows what the fbx import material looks like. You have to imagine all the different combinations that are possible. The fbx plugin looks at what is needed and connects the nodes or deletes them so you don't get a lot of nodes sitting around doing nothing.

clintonman · Post by **clintonman** » 19 May 2013, 17:50

Looks like I forgot to update this thread. A material converter script/plugin was created Feb 20 2013.

http://www.clintons3d.com/plugins/trues ... index.html"

FBX 2 Updates:

Jan 4 2013 - recompiled
Jan 24 2013 - fixed uv set 2 bug, added ability to export a 3rd uv set
Jan 28 2013 - fixed bind pose, fixed camera and lights transforms, fixed button appearance
Feb 4 2013 - fixed crashes from ambient light, no mesh normals and mesh with SDS materials
Mar 21 2013 - UDK game engine specific export modes, default export mode and Z-up export mode

http://www.clintons3d.com/plugins/trues ... index.html"

Wigand · Post by **Wigand** » 04 Aug 2013, 16:21

Today, I tried it and got an error message:
Load node: Failed to load ....

Do I need something else to get it started?
Do I need a autodesk installation or such?

I am working on a W8 64 System.

clintonman · Post by **clintonman** » 04 Aug 2013, 19:03

Wigand wrote:Today, I tried it and got an error message:
Load node: Failed to load ....

Do I need something else to get it started?
Do I need a autodesk installation or such?

I am working on a W8 64 System.

No autodesk installation needed.
Was the error during installation or when trying to import/export? What did the "...." after "Failed to load" say?

Wigand · Post by **Wigand** » 04 Aug 2013, 19:31

In TS7.6 I installed and loaded the plugin: Clintons3DFBX.rsx 5.003K
then opened Library browser and double clicked: Clintons3DFBX
A new section of two objects appeared. One called Clintons3DFBX as NA and a second
mostly invisible: install fbx2 import export.
This one I put into Link Editor. Now I got the:
LoadNode: Failed to load install fbx2 import export

Maybe there is something wrong with the paths.
You know I have a german system, and maybe you use the english path-names?

trueBlue · Post by **trueBlue** » 04 Aug 2013, 21:55

Scripts created in tS76.1 are not backwards compatible. It is possible to Copy/Paste or Export/Import the scripts though in tS76. HTH

Wigand · Post by **Wigand** » 05 Aug 2013, 17:38

Thank you TrueBlue for this hint.

I had to look for a ts761 installation file, but did not found.
I still have some Beta installation files on an old drive, but
they all told me that they are expired.
I thought the last beta did not have an expiring function.
Do you remember which one it was?

Now I copied a 761 folder direct from an XP partition into my
Programs (x86) folder. (without installation)
I was surprised because it launched.

........some hours later:

install fbx2 import export

Now I got the message:

Load Object: Invalid version: 26980

clintonman · Post by **clintonman** » 06 Aug 2013, 04:44

Maybe you can try a fresh download and install. This page has ts7.61 both versions.
http://www.flat2d.com/Truespace_en.aspx"

Edit: and by default truespace doesn't install to the program files folder like a normal program

Wigand · Post by **Wigand** » 06 Aug 2013, 17:20

Thank you for this link. This is what I have been looking for.

But, still problems:
As soon as I click on the Import Button I get an Alert: Import cancelled

clintonman · Post by **clintonman** » 07 Aug 2013, 02:35

The first thing you should see is a file open dialog. Maybe it's a win8 thing. Can you run in compatibility mode for older versions? I don't have win8 so no way to test the idea.

Edit: I did a test by downloading and installing on a non-developer Vista 32bit machine and it worked. This test was to be sure a bad version didn't get uploaded.

clintonman · Post by **clintonman** » 29 Sep 2014, 02:15

Updated to use fbx sdk ver 2015.1
Includes the older 2013.2 version because skeletal mesh import won't work with the 2015 version

Adds support to export non-overlapping animation clips as takes.
Fixes bare skeleton animation import
the new fbx sdk adds alembic mesh and several motion capture formats

The motion capture formats come in sideways so it would need some adjustment after importing.

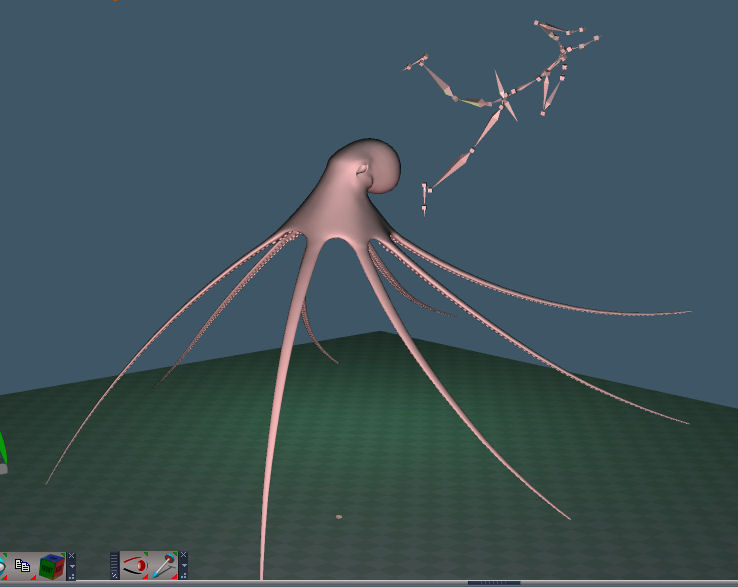

image shows the sample alembic octopus mesh and bvh skeleton import

Draise · Post by **Draise** » 29 Sep 2014, 02:37

Wow, this is amazing!

Alembic!?!!!

clintonman · Post by **clintonman** » 29 Sep 2014, 05:22

Draise wrote:

Wow, this is amazing!

Alembic!?!!!

Yep, but only the mesh. No animation.

clintonman · Post by **clintonman** » 05 Oct 2014, 17:02

Wigand wrote:Thank you for this link. This is what I have been looking for.

But, still problems:
As soon as I click on the Import Button I get an Alert: Import cancelled

I did a fresh install of the plugin and got the same bad behavior. When I tried to fix it it just disappeared on it's own. I think the plugin was failing to open the import dialog and this results in the cancelled message. It looks like a problem with trueSpace communication with windows. So bottom line is I have no solution but the problem may go away on it's own.

clintonman · Post by **clintonman** » 05 Oct 2014, 23:43

Update:

Bind pose(default pose) import is working now. The FBX format is weird. Some files don't have a bind pose specifically defined inside them, so you have to get it indirectly by looking at the skinning info. If a bone doesn't skin anything it doesn't show up so I combine that information with the pose of the skeleton in the scene at frame zero and hope for the best(so far so good).

Temporary skin files in the Biped folder are deleted after skinning.

The output console will display the number of takes in a file. Also reduced the number of status messages during import.

clintonman · Post by **clintonman** » 12 Nov 2014, 02:33

Update:

Bug fix. IK handles and locks was causing only a portion of the skeleton to export.

Discovered that the FBX export of skeleton animation may be off. It will animate ok in truespace but when the plugin runs through the animation the IK calculations may be off. More keyframes seem to improve it. Baking the animation before export may be the way to go. Need a new script for this.

Draise · Post by **Draise** » 20 Nov 2014, 04:26

I've tried to install it, with the two RSX plugins and then the script loaded via the dialogue, then all good.. but when I try export I get an alert with "Export Cancelled." dialogue. Then it proceeds to do nothing.

A little help?

clintonman · Post by **clintonman** » 20 Nov 2014, 15:19

Draise wrote:I've tried to install it, with the two RSX plugins and then the script loaded via the dialogue, then all good.. but when I try export I get an alert with "Export Cancelled." dialogue. Then it proceeds to do nothing.

A little help?

It's a mystery, see 4 posts up. It happened to me and then then the problem just disappeared. The problem is that it's failing to open the window, so it returns export cancelled. It can't tell the difference between no window and pushing the cancel button. Unfortunately, all I can tell you is to fiddle with truespace and hope it fixes itself. In the mean time I'll take another look/do some google searches.

clintonman · Post by **clintonman** » 20 Nov 2014, 16:44

I think I found a fix.

Download and replace the rsx file.

http://clintons3d.com/stuff/Clintons3DFBX2015.rsx"

Draise · Post by **Draise** » 21 Nov 2014, 03:37

AWESOME! Tried it out, works like a charm.

That fixed it! Whatever you did. Thanks Clinton, simply the best.

clintonman · Post by **clintonman** » 21 Nov 2014, 03:51

Great. I got super lucky finding the solution. I'll update the official release to use the new method.

Draise · Post by **Draise** » 13 Mar 2015, 02:56

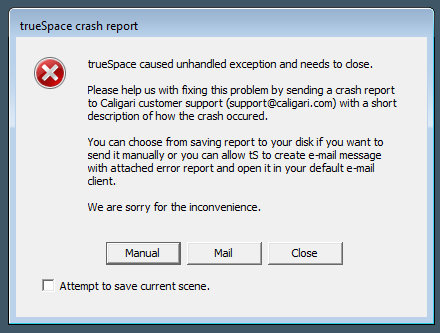

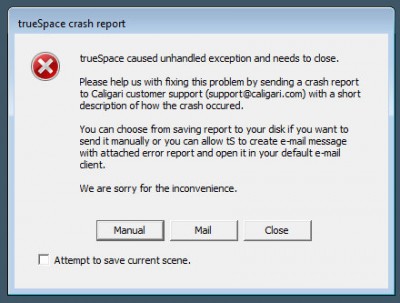

I'm getting hard crashes right now. Why do you think that could be? Which RSX do I use again?

EDIT: been uninstalling, reinstalling, it's just.. cold hard out crashing on export.

clintonman · Post by **clintonman** » 13 Mar 2015, 14:23

Draise wrote:I'm getting hard crashes right now. Why do you think that could be? Which RSX do I use again?

EDIT: been uninstalling, reinstalling, it's just.. cold hard out crashing on export.

I'll see if I can find something this weekend. Does it crash when importing?

Draise · Post by **Draise** » 13 Mar 2015, 14:43

It does not. It says the import was canceled.

clintonman · Post by **clintonman** » 13 Mar 2015, 17:25

Go to
http://clintons3d.com/plugins/truespace ... index.html"

Download FBX_2 for trueSpace 7.61 to get the latest installer, click the title

Just below the title is Feb 14 2015 replacement rsx file
Download that, exit truespace and replace the rsx file to fix the import problem

----

I downloaded from the website, installed to a fresh install of truespace and it exports without crashing. When does the crash happen? When you click the button or after the file dialog or after some time has passed? Is it a specific scene or any object in any scene?

---

One thing I did learn is that the rsx files need the runtime libraries, but that has no bearing on your issue.

Draise · Post by **Draise** » 13 Mar 2015, 19:26

A fresh install.. hmm.......

I have a modified version of TS with Update 3....

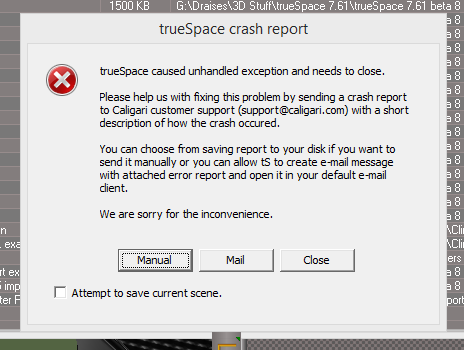

Trigger the error by exporting anything, or importing anything, after the save dialogue pops up.

Get the following error when I confirm the name and destination.

I will try reinstall TS and then... get my CTX in and see.. if there is a bad script in there (doesn't uninstall properly?)

clintonman · Post by **clintonman** » 13 Mar 2015, 23:48

It's a mystery to me. I did another test on a win8 virtual machine with the fbx export and then with the newer rsx file. It worked here on winxp, win7 and win8 so it's not the windows version. Can you post your scene, any scene and the full path name you're trying to save too?

I would backup the truespace folder before reinstalling that way you don't lose anything if it still doesn't fix it.

clintonman · Post by **clintonman** » 03 Apr 2015, 06:15

Update:

removed the old fbx 2013 rsx plugin
fixed a bridge renaming problem when importing by turning the bridge off during import then setting it back to the original value after import is complete
file export dialog name defaults to the selected item name or the scene name
new checkbox for exporting only the seleted items
added batch processing for exporting several items to individual files in one go.

clintonman · Post by **clintonman** » 09 Apr 2015, 05:15

Another update:

option to only export keyframes instead of baked frames. This makes for smaller files and faster exports.

exports 3 interpolation types: linear, stepped and cubic(smooth)
It doesn't read the keyframe handles only the type of keyframe .
http://clintons3d.com/plugins/truespace ... index.html"

On a side note I also updated the Clintons3dPlugin.rsx so script can read the keyframe data. It reads the value, the type of interpolation and the angle and length of the keyframe handles. The data is provided in JSON text format so it can be converted to a javascript object.
http://clintons3d.com/plugins/truespace ... index.html"

Cellulo · Post by **Cellulo** » 09 Apr 2015, 10:30

Thanks Clinton, it's include in my setup installation of trueSpace 7.61 Standalone.

Draise · Post by **Draise** » 27 Apr 2015, 05:06

I managed to get the export to work after redoing my CTX file, but now the Import has a "Import Canceled" dialogue every time I try use it. The dialogue doesn't load.

I keep finding bugs!

Maybe I'll try reinstall trueSpace instead of resetting the default context?

clintonman · Post by **clintonman** » 27 Apr 2015, 14:08

Are you sure you have the latest version? That "Import Cancelled" should have been fixed a while ago.

Try manually removing the Clintons3DFBX2015.rsx file and reinstalling the plugin. The latest rsx file has a date of April 8 2015.

Draise · Post by **Draise** » 27 Apr 2015, 14:16

I have lost track. I'll do that.

Draise · Post by **Draise** » 27 Apr 2015, 19:24

Uninstalled manually - though the script and buttons remain with the uninstaller? Then I downloaded the latest, and.. found out it was the version from April 5th (not April 8th as you implied). It still makes TS cold crash for me - now it isn't working.

If I get this going I'll be a happy man, but for now... I somehow seem to be cursed.

EDIT: Manually installed the RSX - uninstalled the one the script installed - import worked fine. Now I'm testing export.

EDIT_02: Export now works, with the right shaders. Seems I had a shader error that was causing it to crash. I may need to..... sort that out.

Phew, now it's all working. Lovely.

clintonman · Post by **clintonman** » 28 Apr 2015, 00:42

Glad you got it working. Can you share the shader that causes the crash?

I downloaded it fresh and the date says April 27, so I guess we can't really trust the date modified. The created date does show April 8th. I wonder where your April 5th is coming from.

Draise · Post by **Draise** » 28 Apr 2015, 02:04

Haha, it was the date I saw on the installer node.

It was my ultra shader or sss shader that crashed it.

Maybe if you put a shader checker to make sure your FBX shader is put on?

clintonman · Post by **clintonman** » 28 Apr 2015, 15:10

Crash is fixed with new rsx file. The problem was undefined bitmap files in the nodes. Also updated the rsx file version to v1638407.

The new rsx file can be downloaded just below the main download link.

Draise · Post by **Draise** » 01 May 2015, 16:40

Hmm.. you have to do a lot of preperation before exporting - just read through the documentation. I had a CTX where it was working.. then got the same cold crashes later.

So.. I figured out that you need to follow some steps before export:

1. Fix triangulation
2. Fix corrupt SDS
3. Delete floating points
4. Paint with default shaders when and where possible (maybe?)
5. Flatten Geometry

I might make a script that does that...

Draise · Post by **Draise** » 01 May 2015, 16:59

Ah, that is what is crashing it.....

I have more than one material applied to the mesh - islands with different materials............. So.. I have to export with no material islands....

CONFIRMED: one material applied works, two materials no.

EDIT: I should try this with a sphere....I did make it happen once... exporting selected with multiple materials applied.. how does the material system work?

clintonman · Post by **clintonman** » 02 May 2015, 00:22

The importer is limited to 16 materials and the export I think has no limit on the number of materials.
Can you post a sample that causes the crash?

Draise · Post by **Draise** » 02 May 2015, 00:30

I'll do that soon.

Just an observation, materials painted on "None" mode instead of "Object" or "Scene" doesn't seem to be crashing it. Object or scene mode yes, those both crash the painted sphere with two shaders (reset material editor, paint with that).

EDIT: tried it out on a model that always crashed on export, and using your material converter, converted the materials to "none" and it exported fine.

clintonman · Post by **clintonman** » 02 May 2015, 03:20

Updated the rsx file so it doesn't crash on instanced materials. They export as default white material.
download the new rsx file just below the main link

Draise · Post by **Draise** » 02 May 2015, 04:41

That fixed it. Awesome. Good work Clinton! Sorry about all the bug finds........ I think I had a knack for that. I'll be keeping on testing it here and there.

clintonman · Post by **clintonman** » 02 May 2015, 18:17

Draise wrote:That fixed it. Awesome. Good work Clinton! Sorry about all the bug finds........ I think I had a knack for that. I'll be keeping on testing it here and there.

Sounds good to me.

Draise · Post by **Draise** » 07 May 2015, 19:53

Tried out hte DXF import from a file exported from Inkscape, as a ROBO-Master type of spline, and the legacy LWPPOLYLINE type.....But.. didn't do the DXF export from inkscape very well (it turned out to be just a cube? Clinton?)..

seppgirty · Post by **seppgirty** » 07 May 2015, 23:05

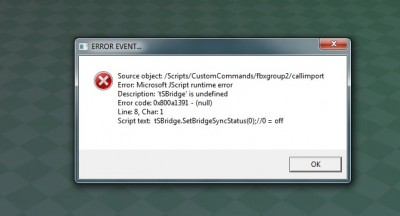

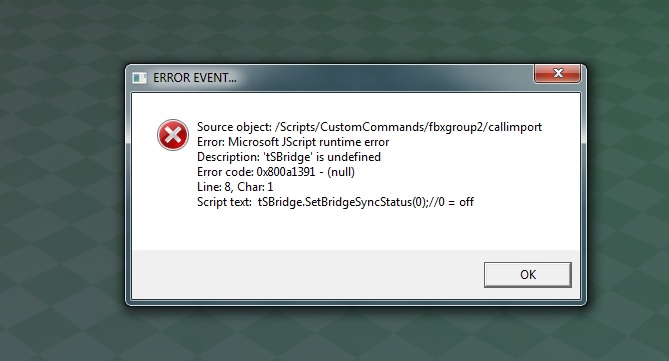

I get this error message when trying to import "i'm using 7.61 stand alone with unofficial update 3, Installed the 2008 c++ like you said.

I keep setting the bridge to on/auto

clintonman · Post by **clintonman** » 09 May 2015, 02:31

seppgirty wrote:I get this error message when trying to import "i'm using 7.61 stand alone with unofficial update 3, Installed the 2008 c++ like you said.

I keep setting the bridge to on/auto

Doh! You got me.

I've been testing on truespace full version. I'll take a look at it and get back to you.

clintonman · Post by **clintonman** » 09 May 2015, 04:38

tSBridge error is fixed now.

seppgirty · Post by **seppgirty** » 09 May 2015, 14:09

Awesome Clinton! I imported an FBX model from autodesk character generator. A .obj and a 3ds model and it seemed to work fine. Have not exported anything yet. I'll do that when i have time.

Thank you very much.

clintonman · Post by **clintonman** » 13 Jan 2016, 15:47

Update:

fixed a uv import bug. it was only importing indirect style uv. this adds a working direct style uv import.

i discovered the bug when importing an fbx from the unreal engine

clintonman · Post by **clintonman** » 11 Mar 2016, 06:02

Update:

changed material importing method. The old method used a pre-existing 16 material node that is loaded from disc for each object then all the extra stuff was thrown out. The new method builds up from a simple node and loads from the plugin directly instead of disc. The result is much faster load times and removal of the 16 material limit for fbx imports.
new plugin version is now v.163841

clintonman · Post by **clintonman** » 06 Jun 2016, 17:30

Update:

some export changes to take advantage of the new unreal engine fbx scene import feature

more efficient material exports - no repeated materials
small bug fix, position skeletal mesh root bone after binding/skinning
exports an extra null representing the actor position and name - useful for scene exports
exports mesh instances based on the unreal t3d export script static mesh tag

clintonman · Post by **clintonman** » 27 Sep 2016, 02:55

Update:

improved Z up orientation of imported and exported items
fixed bug when exporting actor with skeleton root or mesh with non-zero rotations
fixed bug of keyframe only export - animation data was not being fully matched to the proper joints
new world space export option - reads the world matrix instead of the local matrix

new plugin version is v.1638412

Draise · Post by **Draise** » 27 Sep 2016, 17:23

Good fix!

clintonman · Post by **clintonman** » 26 Mar 2017, 04:41

Small update:
option to only import animation information from the file
new rsx file version is v.1638413

I made this change because I plan to animate outside of truespace and it will be much cleaner if animation is the only thing that changes in the scene.

BNG · Post by **BNG** » 26 Mar 2017, 07:48

Do we need to remove older versions before installing the latest version?

clintonman · Post by **clintonman** » 26 Mar 2017, 14:45

Install steps are at the top of the page here: http://clintons3d.com/plugins/truespace ... inout.html"

1. download the zip file
2. load the RsObj installer using the file menu, not drag and drop
3. press the uninstall button to remove the old rsx file
4. restart truespace to complete the uninstall
5. press install button

other option - manually replace the rsx file while truespace is closed and then just run the install

you may need to get the vc++ runtime 2008 sp1 from microsoft if this is the first installation of an rsx plugin from my site

clintonman · Post by **clintonman** » 07 Jun 2017, 04:20

Update: June 6 2017
Improved polygon to triangle code for import which may solve the problem of instability for importing concave polygons.
Level of Detail(LOD) export for meshes, not actors/skeletal meshes
New export mode, ue4cinematic, makes animations compatible with the Unreal Engine Cinematics system
rsx file version xxx...414

Draise · Post by **Draise** » 07 Jun 2017, 13:58

THIS UPDATE. THIS UPDATE!!!

FBX 2 import export

FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export

Re: FBX 2 import export
