How to hide the wall of the house?

Post by Hicks »

Hi,

I load the house scene in TS7.51.

1. How to hide the wall of the house which face to the camera? The wall blocks the line of sight!

2. I don't want to render the wall which face to the camera, how should I do?

3. How to open the scene editor in TS7.51 ?

User avatar
spacekdet
Captain
Posts: 1810
Joined: 27 May 2009, 15:00
Type the number ten into the box: 10
Location: On the day shift at the Utility Muffin Research Kitchen

Re: How to hide the wall of the house?

Post by spacekdet »

Take a look, see if this helps:

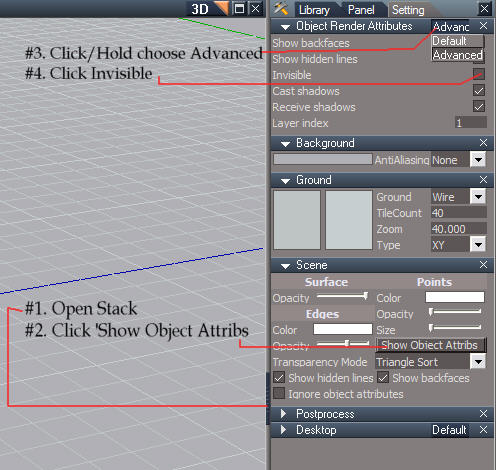

(For Model Side)

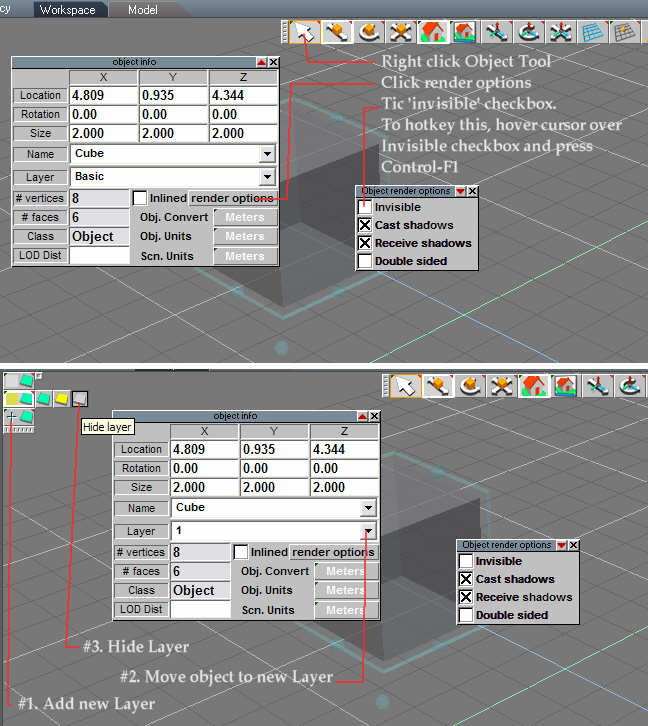

(For Workspace):
User avatar
bitkar
Captain
Posts: 2089
Joined: 16 Mar 2010, 07:14
Type the number ten into the box: 0
Location: Czech Republic

Re: How to hide the wall of the house?

Post by bitkar »

another way could be deletion of one face of a plane (wall). So you can have only oneside wall. Iam not sure if this work in vray but does in lw for sure. Just click it with right mouse and use delete face button or create a singleside plane with a right click on a "plane button".
Michal aka bitkar
tS freak since tS2 (1998) and forever (tS7.61 modeler)
