pugman 1 · Post by **pugman 1** » 10 Jul 2012, 17:01

Hi i want to better my second pc. i have a hd 5870 2 gig vidio card .it wont work with the mother board
i need gddr5 i think on the board also ddr3 for the ram. anyone know of a good
one .
Thanks Ralph

Shell1850 · Post by **Shell1850** » 11 Jul 2012, 00:11

Anything Intel. I built a Core 5 2500K and a Core 7 3770 and both run fast.

v3rd3 · Post by **v3rd3** » 11 Jul 2012, 01:49

AMD or Intel CPU?

I am a big fan of ASUS mobos so I would suggest looking there.

Shell1850 · Post by **Shell1850** » 11 Jul 2012, 16:51

Kingston HyperX Gaming memory. It costs a little more but it comes with a heat sink. I have been using Asus mother boards and have had not problems.

pugman 1 · Post by **pugman 1** » 11 Jul 2012, 17:00

Thanks. i have tryed the vidio card again connected but i get no vidio signal,
i have a 500w power unit ddr2 4gig ram asus moterboard, not sure what no .
i am thinking on a complete rebuild with crossfire mother board 32gig ram
and a damn good cpu but which one i7 i think.

froo · Post by **froo** » 11 Jul 2012, 20:02

Hey Ralph.
Any beep codes? Nothing on the screen at all? Do you have another video card you can drop in to ensure
your motherboard is still alive?

Shell1850 · Post by **Shell1850** » 11 Jul 2012, 21:56

Did you update the Bios.

Get a I7-3770 or I7-3770K.

What type of monitor are you using.

v3rd3 · Post by **v3rd3** » 12 Jul 2012, 02:20

Another thought is to make sure the rails from the power supply are sufficient to power the card....

ATI Radeon™ HD5870 System Requirements:

PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard

500 Watt or greater power supply with two 75W 6-pin PCI Express® power connectors recommended

pugman 1 · Post by **pugman 1** » 14 Jul 2012, 14:55

Hi shell1850 ,no i have not updated the bios
i7 it will be .i have this on my power pc .i have 2 full hdmi flat moniters widescreen and a 17 inch flatscreen normal,
i am going to rebuild the second pc i7 , asus mother board p8p67 pro or p6t7ws super computer
power suply 850 w with cable management, i will use my hd 5870 ati card and try to get a second one
and use the crossfire method for them, and finally 24 or 32 gig ram.
I think this should do the job for enything, just have to get the parts bit by bit .

pugman 1 · Post by **pugman 1** » 14 Jul 2012, 16:31

I think this might be a better power unit
http://www.ebay.de/itm/350580758164?ssP ... 511wt_1163"
i have order it now for the rest

Shell1850 · Post by **Shell1850** » 15 Jul 2012, 16:42

I have the P8Z77-V board. It is big with lots of connectors.

pugman 1 · Post by **pugman 1** » 15 Jul 2012, 16:51

I have just got the asus p8p67 pro

pugman 1 · Post by **pugman 1** » 15 Jul 2012, 18:31

I have also just picked up win7 pro for my rebuild.
case, motherboard, vidiocard , win 7 i have .to get
cpu,cpu cooler , power suply because i cacelled the order i need min750 w plus 4 pce cables so this one
Netzteil Tagan BZ 800 Watt
and ram. also hard drives 120 gig ssd and 1tb for data
I hope this will all work its my first full rebuild .
but i think it will be awsome

Shell1850 · Post by **Shell1850** » 15 Jul 2012, 19:22

I installed windows 7 on the ssd drive. But when I added regular hard drive, the computer locked up. I updated the bios - website indicated several updates since the Feb update.I reinstalled windows 7 with ssd drive and 500 gb drive. Created partitions on the 2 drives and it worked fine. worked fine.

Building a new computer is fun. The fun part is when components become cheaper and you can add at a cheaper price. Video cards pricing is crazy. The 500 dollar video card today is the 200 dollar video card next year.

pugman 1 · Post by **pugman 1** » 22 Jul 2012, 14:22

Im going to get this cpu soon just waiting for my tax rebate
http://www.ebay.de/itm/230791249921?ssP ... 809wt_1163"
which make of ssd is better Im thinking of puteing 2 120 gig in the pc i build,
i found this case in ebay to Cooler Master CM 690 II Advanced Midi Tower ATX Gehäuse.
When im done building this and it works i will put here
all the parts and cost to show how cheap you can build a power pc

marcel · Post by **marcel** » 22 Jul 2012, 21:37

My new config :
P8Z77-V board
Cooler master CM690
i7 3770k
Gtx 680 oc
SSD+2 to harddrive
16 gigas ram
Win 7 64b pro
It work very well.
I think to buy a new screen with a resolution of 2560 soon.

Speed to render, ligthwork and TS : 6 time more than my old core duo. Lightwork use the 8 thread very well.

pugman 1 · Post by **pugman 1** » 23 Jul 2012, 16:40

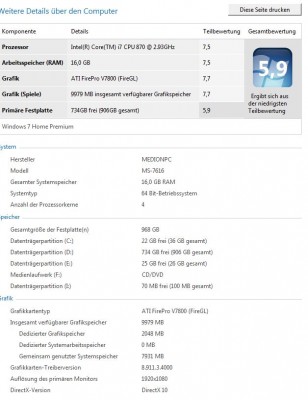

This is the pc i use at the moment its powerfull .it has a ssd drive its the c drive but it was way to
small to handle all my 3d software. I am trying to build a better pc than this one.
Marcel yours looks to be a damm good one to.
i get the parts for my new one from ebay that way it keeps the cost down
but i think it will be more expencive than a shop one, but saying that mine will have better parts

pugman 1 · Post by **pugman 1** » 06 Aug 2012, 16:04

still going on with this build but having alot of problems trying to find
a suitible power unit i need one with 4 pci and main power cables 24 pin and 8 pin
most units have 2 pci and 24 + 4 plus 750 watt

Shell1850 · Post by **Shell1850** » 06 Aug 2012, 16:17

The video card have power adapters included. Just plug into the 2 4 pin plugs that you don't use anymore.

v3rd3 · Post by **v3rd3** » 06 Aug 2012, 16:18

http://thermaltakeusa.com/Product.aspx?C=1264&ID=2084

they have an 850 as well ... does this help?

pugman 1 · Post by **pugman 1** » 06 Aug 2012, 16:44

v3rd3 Thanks that is what i was looking for .
nice one dude

v3rd3 · Post by **v3rd3** » 06 Aug 2012, 16:57

Thermaltake... it's a good thing....

pugman 1 · Post by **pugman 1** » 07 Aug 2012, 06:04

This new build will not be as cheap as i intended ,first the powerunit must be a
good one ,the mother board i have but im going to get the asus z77 sabertooth 196 euros
ram is expensive so for now i got 8gig corsair Vengeance i will updat that to 16gig some time
cpu 270 euros i7 ivy bridge works well with the motherboad.
case cool masters cm 690 11 advaned ebay 69 euros new
plus ssd hd and 1tb hd ,cpu cooler,
for now ill use my ati hd 5870 its a good enough card for now i will update this
for 2 newer cards and run them with crossfire.
with this setup without the 2 vidio cards it will be better than my
1500 euro pc wich is what i wanted to achieve.
when i have this finished i will post the full specs and full cost off all parts
Cheers Ralph

pugman 1 · Post by **pugman 1** » 11 Aug 2012, 06:20

The rest of the parts i need for this should be here early next week then i can build it,
so far i have
cm 90 11 case
Antec high current pro 750 80+ gold power unit
assus sabertooth z77 matherboard
kingston 128 gig ssd
artic freeze cpu cooler
ati firepro v7800 2gig .I am putting this card in because it suports the shader pck that vue uses to the full.my hd5870 does not
16gig ellxir ram, to be updated to corsair vengence 16 gig
i7 3770k 3.5gh ivy bridge, to come next week
win 7 pro 64 bit

pugman 1 · Post by **pugman 1** » 16 Aug 2012, 17:42

My cpu just arrived now time to build this thing
hope all goes well its my first time.
post pics when im done

Draise · Post by **Draise** » 16 Aug 2012, 18:07

Hurrah! The fun part!

pugman 1 · Post by **pugman 1** » 17 Aug 2012, 04:41

Ok the pc is fully built ,booted it and noticed the cpu fan was not detected, its pluged into the right
connector also the front fan is not dected for the front fan i took off nthe molex and pluged it direct on
the mother board any ideas here where the prob could be,its only teething probs everything else works

pugman 1 · Post by **pugman 1** » 17 Aug 2012, 06:04

Ok it was the cpu fan at fault i just put the fan on which come with the cpu
and now ok ,if i want to overclock this i will need a better cooling system.

pugman 1 · Post by **pugman 1** » 17 Aug 2012, 14:42

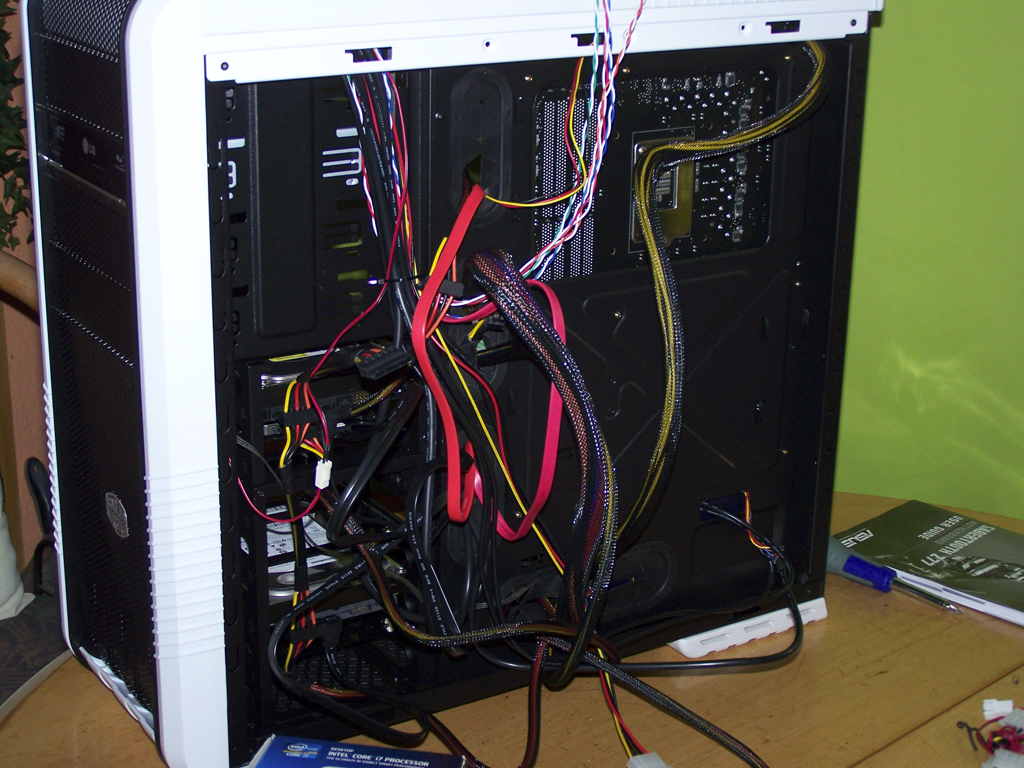

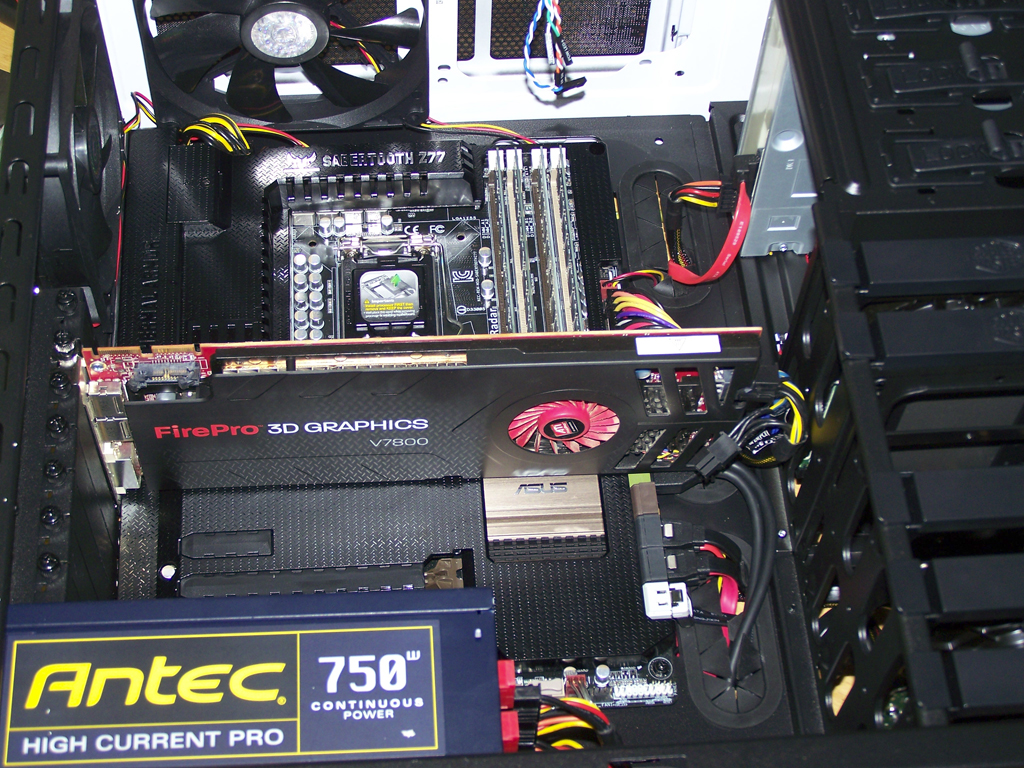

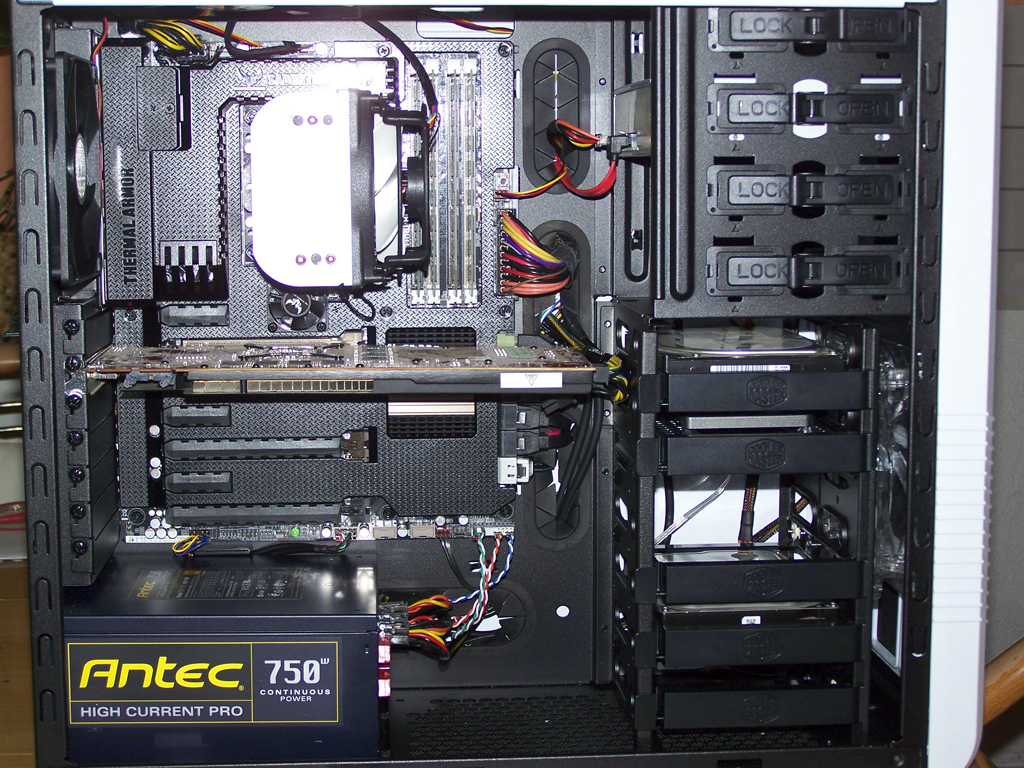

Ok here are a couple of pics
as it stand now it it has cost me 600 euros without vidio card.
it has more power than my 1500 euro pc,i will never buy a shop pc again
building your own is cheaper and you know you have top hardware inside
Job Done...

froo · Post by **froo** » 17 Aug 2012, 15:47

Very nice routing job too pugman.

pugman 1 · Post by **pugman 1** » 17 Aug 2012, 16:34

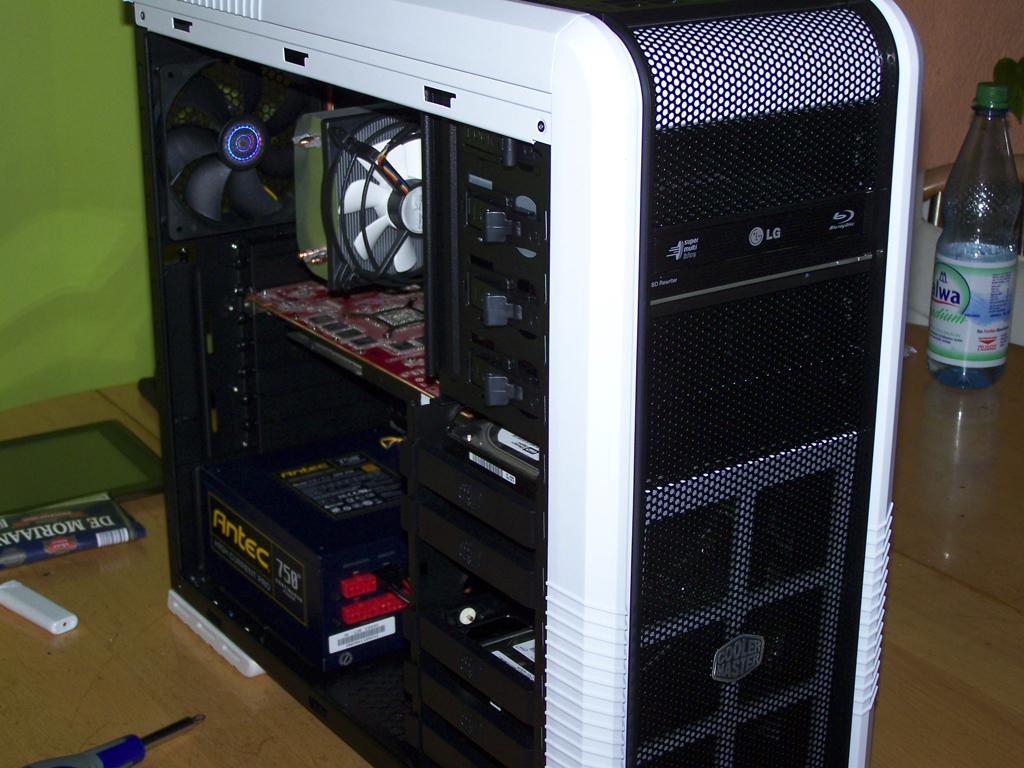

Thanks Froo, Here is a front vue.
cool masters 690 11 advanced 6 case fans . 3 intake 3 vent out
asus sabertooth z77 2 small cooling fans
16 gig ram
amd firepro v7800 work station card
kingston 128 gig ssd sata3 6gig
500 gig sata3 hard drive
250 gig sata2 hard drive
Full hdmi wide screen moniter
win 7 pro
i7 3770k 3.50ghz ivy bridge

Shell1850 · Post by **Shell1850** » 17 Aug 2012, 16:44

Nice. Why can't they rotate the hard drive cabinet so you could slide the drives in without removing cards.

I hope you use 8 gb memory modules so it is easy to upgrade to 32 gb.

I have a 120 gb ssd drive. I am installing many programs on a hard drive. Windows 7 swap file is around 32 gb.

pugman 1 · Post by **pugman 1** » 18 Aug 2012, 16:06

Just instaled a few of my apps ,what a nightmare vue was 3 times to get the up to date version
modo and zbrush 3d coat no prob with activation .it took me so long to get the apps in
because my windows version had the wrong key .i contacted the seller and we sorted it out .
now up and running full .man this is fast, boot 15 secs shut down quicker .ssd is mighty fine

pugman 1 · Post by **pugman 1** » 21 Aug 2012, 11:41

Hi i got my replacement cpu cooler ,Artic freezer 13.

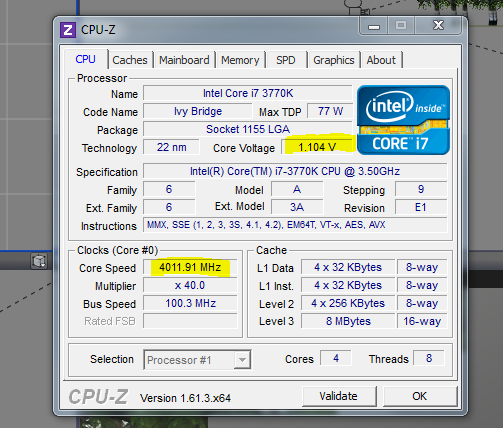

thought i would try overclocing this baby ,took it from 3.5mhz to 4.1 did a test with vue
rendering with 20 high definition trees and grass on the ground it render in ultra exteemley fast
using all 8 cores to the full, temp of the cpus was 41c they tic over at 31c. vaultage 1.104 under full load
i could probably take it higher but i dont want to kill this thing
Cheers Ralph

froo · Post by **froo** » 21 Aug 2012, 16:37

Pretty sweet there pugman!

pugman 1 · Post by **pugman 1** » 22 Aug 2012, 05:38

here is a vid to show how easy and safe of how to overclock a asus motherboard

http://www.youtube.com/watch?v=20rCMNzkwJo"

marcel · Post by **marcel** » 22 Aug 2012, 10:27

My 3770k with a good ventirad is never hot. It is the best cpu today ( cost/power). Above, the prize become too big for a little more power.

pugman 1 · Post by **pugman 1** » 22 Aug 2012, 10:36

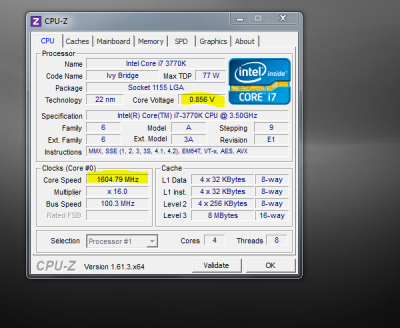

Marcel ,i have the same cpu as you have and like he said its safe to do.
mine is running all cores at 4.2 only when needed like for rendering every thing else
they run at 16.04. if my pc becomes unstable i will post here but till then i leave it at theese settings.
stress tested with prime 95 64bit
the temp on full load was 44 c

Shell1850 · Post by **Shell1850** » 22 Aug 2012, 20:11

It is a good CPU. When I build computers for others, there are 3 things I worry about. Temperature, Temperature and Temperature. This is fantastic. I will have to find another way to heat my apartment.

I have Kingston HyperX memory. I could overclock my computer. I will try it in Jan.

pugman 1 · Post by **pugman 1** » 23 Aug 2012, 08:32

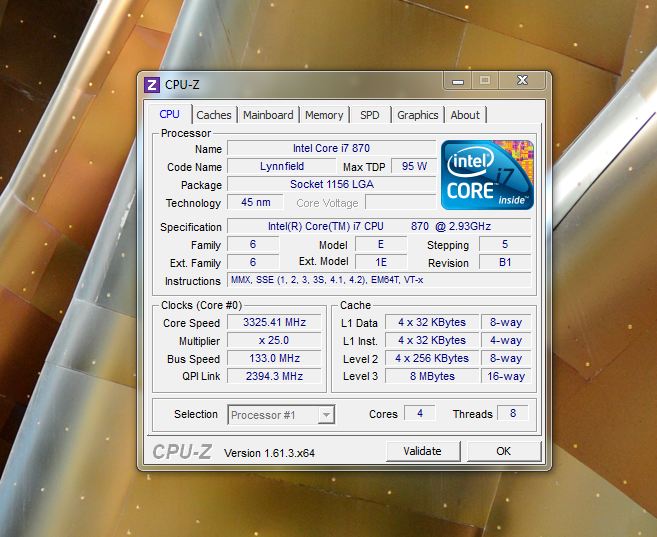

Hi shell1850 .you worry about heat look at this ,
this is from a shop pc i have it about one and a half years now ,it has no fans
i installed the cpuz app to see what this thing had and to my supprize it was overclocked by the shop or manufactere. i never knew
this untill today .
it runs ok

Shell1850 · Post by **Shell1850** » 23 Aug 2012, 21:38

Looks good. It is 85 degrees today. I have no air-conditioning. My core 7 sits at 40 degree C. My motherboard is 40 degree C. I am a Intel re convert. The Empire has struck back.

pugman 1 · Post by **pugman 1** » 04 Dec 2012, 17:12

Finaly finished this beast. mighty sweet it is and fast.
coolmasters case
ssd 128gig
hd 1tb + 250 gig
asus HD 7970 platinum matrix 3gig
mushkin ram 32 gig 1600 10 10 10 27
zabertooth z77 motherboard
intel i7 3770k clocked to 4.4
2 .140 fans 4. 120 fans blue lights
antec 750 w power unit gold
razer mamba wireless mpuse bluelights
roccat keybourd blue lights
Tested with prime 95 .under full load for half a hour 75c
ticking over cpu 22
gpu 24
motherbourd 24

only three thing to get is the latest asus moniters all glass to the edge no rims
perfect for a three moniter set up for eyeinfinity

Draise · Post by **Draise** » 04 Dec 2012, 17:45

WOAH. That is more than a just a beast; that's a mutant cloned enhanced hybrid super monster!!!!

Aszhrae · Post by **Aszhrae** » 11 Jan 2013, 17:19

nice machine
hmm,
eyefinity, just checked it out, very useful for piloting games
although,
I would have never gone with a TB HD unless it's set up as the slave for back up purposes
by the way,
what are you booting the system through?
and is it setup with workstation BIOS? or did you decide to go with the usual?
I have always found that booting through a DOS shell helped immensely when I needed to trouble shoot my system, without having to go through my OS
just some things I found that worked well for me as I have always exercised the right of caution for the purposes of system security without dependency on the OS for everything. Even having software that operated just fine on a separate HD without installing them directly into the Program Files
again,
nice machine,
keep it safe and secure

pugman 1 · Post by **pugman 1** » 12 Jan 2013, 08:02

HI Aszhrae, this pc has 3 hard drives 1 ssd just win 7 pro nothing else , a 250 gig wd with all my software on it
1 tb wd with all my textures vids ,sounds and models i make .also a 2gig external hd for backing everything up.
the system boots from the ssd in 15 to 20 secs .set up normal bios .
I took out the assus matrix because vue did not like it for rendering .now it has my firepro v7800
works like a dream.

Mother board

Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

my turn to build

Re: Mother board

Re: Fan does not run

Re: Mother board

Re: My pc build

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Overclocking

Re: Mother board

Re: overclocking asus

Re: Mother board

Re:overclocking

Re: Mother board

Re: overclocking

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board

Re: Mother board
